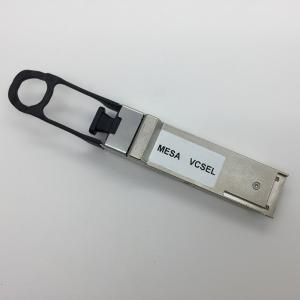

100GbE SR4 QSFP28 MMF Optical Transceiver MMA1B00-C100D Fiber Modules

Mellanox® MMA1B00-C100D is a 4-channel, pluggable, QSFP28 optical transceiver designed for use in 100GbE Ethernet. This module incorporates Mellanox integrated circuit technology, in order to provide high performance at low power. The transceiver operates over parallel multi-mode (MMF) fiber, using a nominal wavelength of 850nm, and is SFF-8665 compliant.

HIGHLIGHTS

Up to 100Gb/s data rate

Very low power consumption 2.2W

Designed with Mellanox ICs

Selectable retiming for both Tx and Rx

Programmable Tx input equalizer

Programmable Rx output amplitude

Programmable Rx output emphasis

SFF-8665 compliant QSFP28

Single 3.3V supply

QSFP28 power class 3

BER better than 1E-15

Class 1 laser safety

Up to 100m on OM4 and 70m on OM3 multimode fiber at 100Gb/s

Up to 100m on OM3 at 40Gb/s

SFF-8636 compliant digital diagnostic monitoring (DDM)

Hot pluggable

RoHS compliant

IEEE 802.3 100GBASE-SR4 compliant

IEEE 802.3 40GBASE-SR4 compliant

SFF-8636 compliant I2 C management interface

MMA1B00-C100D has a standard QSFP28 connector on the electrical side towards the host system supporting CAUI-4. The optical interface is composed of four optical channels/fibers in each direction, intended for a parallel MMF cable via a standard MPO connector. Each channel/fiber operates at signaling rates up to 25.78125GBd.

The transceiver has selectable re-timing in both transmit and receive directions as well as it provides digital diagnostic monitoring of supply voltage, temperature, transmit/receive power, and laser bias. Rigorous production testing ensures the best out-of-the-box installation experience, performance, and durability.

Mellanox LinkX optical transceivers include a 1-year limited hardware warranty, which covers parts repair or replacement.
